12 Head Multihead Weigher with Stainless Steel 304/316 Construction and 10" Color Touch Screen for High-Accuracy Weighing

12 Head Multihead Weigher

Stainless Steel 304/316 Combination Scale

10" Color Touch Screen Belt Weigher

Lieu d'origine:

Guangdong, Chine

Nom de marque:

TOUPACK

Certification:

Nous contacter

Demandez un devis

Détails du produit

Tension:

220V

Pouvoir:

1 kW

Dimensions:

1 900 mm(L)* 1 240 mm(L)* 1 207 mm(H)

Poids:

380 KILOGRAMMES

Matériel:

acier inoxydable 304/316

Système de conduite:

Moteur pas à pas

Pesée maximale:

20-5 000 g

Précision:

× (0,5)

Intervalle d'échelle minimum:

0,1 g

Vitesse maximale:

bpm 40

Pesage de la taille de table:

250*160 mm

Système de contrôle:

API

IHM:

Écran tactile couleur de 10 pouces

Alimentation:

Le réglage de l'alimentation doit être effectué à l'aide d'un système de régulation de l'alimentatio

Fonction:

Étanche

Conditions de paiement et d'expédition

Quantité de commande min

Prix

$6,800-16,000

Produits connexes

Vidéo

12 Head Multihead Weigher with Stainless Steel 304/316 Construction and 10" Color Touch Screen for High-Accuracy Weighing

Obtenez le meilleur prix

Stainless Steel 304/316 Combination Weigher with 220V Power and 1 KW Output for High-Accuracy Fruit Packing

Obtenez le meilleur prix

Automatic Multihead Weigher Packing Machine for Food Application with 5-50 Bag/min Speed and Plastic Packaging

Obtenez le meilleur prix

500 KG 220 V 1 Year Automatic Multihead Weigher Packing Machine for Food and Granule Products

Obtenez le meilleur prix

Nous contacter

Contactez-nous maintenant

Description du produit

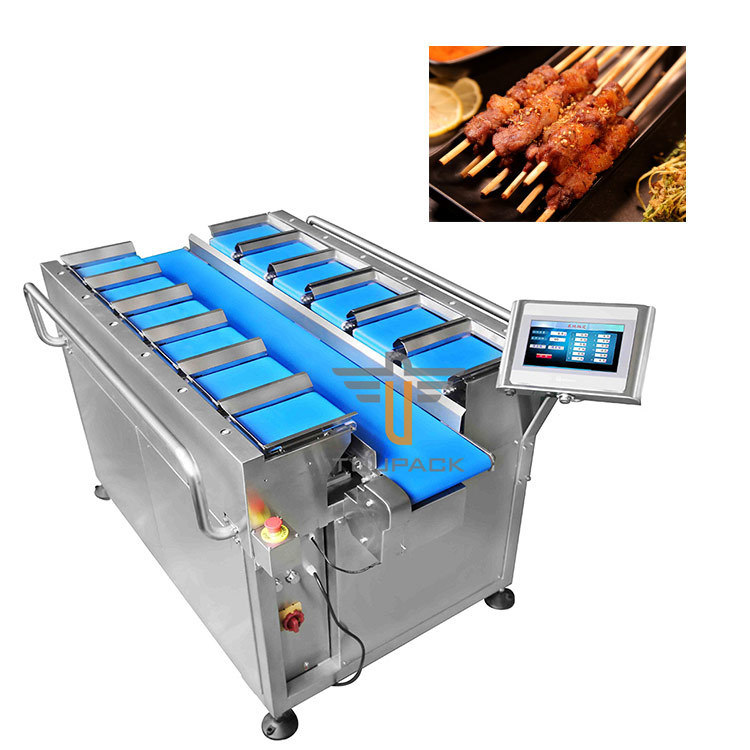

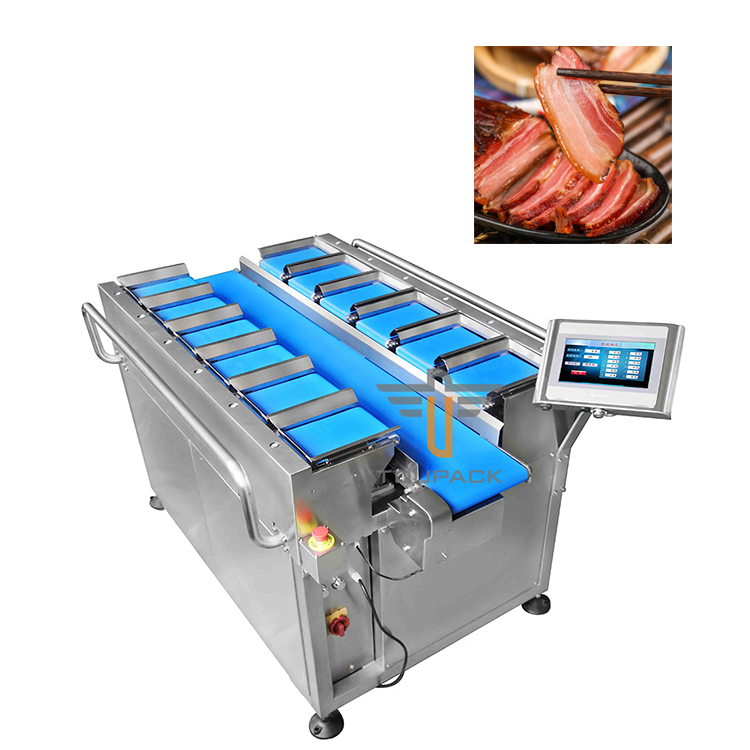

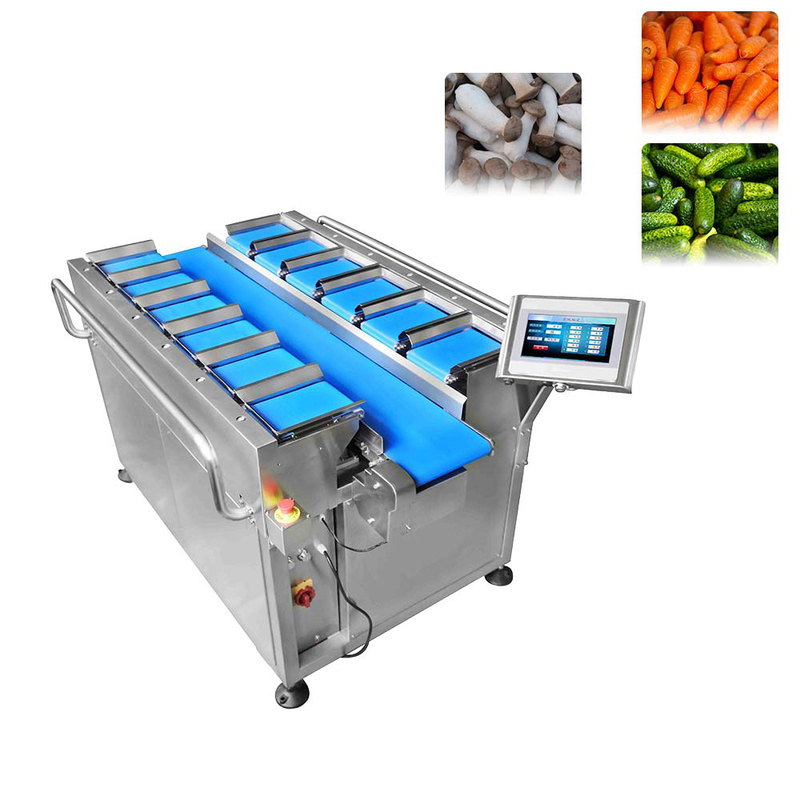

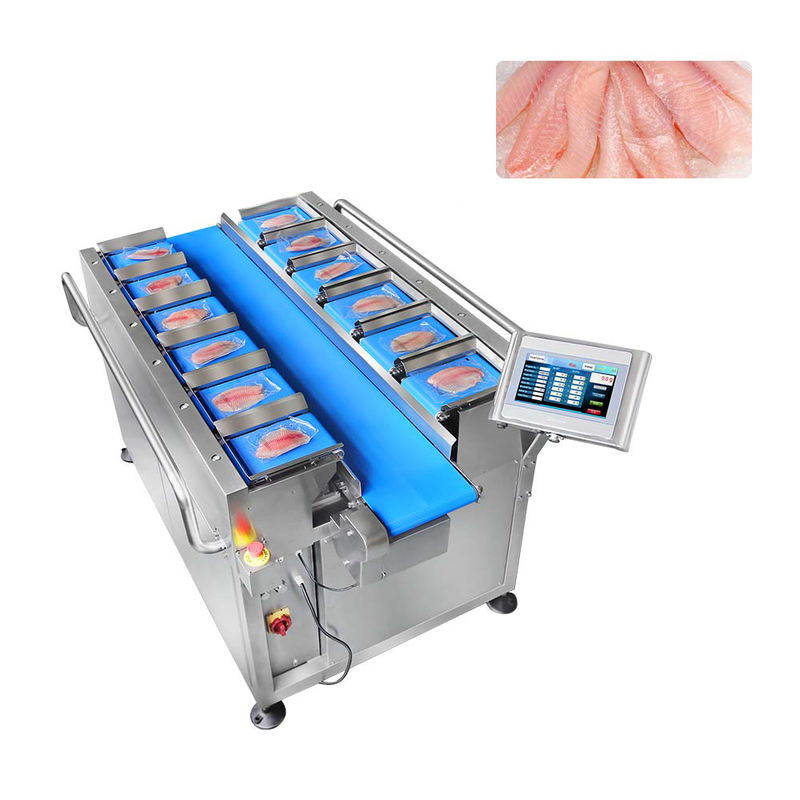

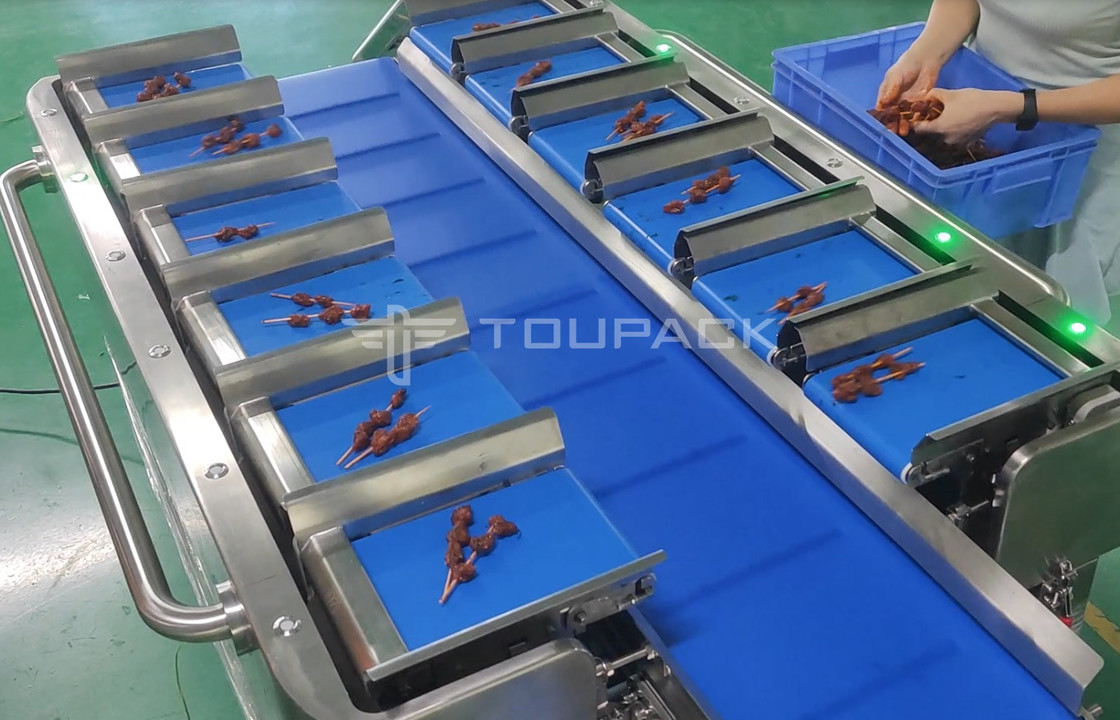

12 Head Multihead Weigher for Kebab Weighing Multistation Belt Combination Scale

High-precision 12-head multihead weigher designed specifically for kebab weighing applications with multistation belt combination technology.

Technical Specifications

Model	TY-ZHZ121P160-01-13	TY-ZHZ141P160-01-13
Max. Weighing (one belt)	20-5,000g	20-5,000g
Accuracy	x (0.5)	x (0.5)
Min. Scale Interval	0.1g	0.1g
Max. Speed	40 BPM	40 BPM
Size of weighing table	250*160mm	250*160mm
Control System	PLC	PLC
HMI	10" color touch screen	10" color touch screen
Power Supply	AC220V ±10% 50HZ/60HZ, 1KW	AC220V ±10% 50HZ/60HZ, 1KW
Packing Dimension	1,900mm(L)1,240mm(W)1,207(H)mm	2,000mm(L)1,200mm(W)1,240mm(H)
Machine weight	280kg	275kg
Package weight	340kg	375kg

Company Advantages

Wide Range of Product Working in weighing, packaging, conveying, multi-weight sorting and detecting machines.
Product Patents Almost all of our products have gained CE certificate, ISO9001 certificate, IP65 and IP67 Waterproof and Dustproof certificate.
Professional R&D Team The number of skilled engineers take up 63% of total employees.
10+ Years of Customized System Integration Providing all kinds of customized intelligent weighing and packaging solutions.
Complete Technical Support All of products is at least 12 month warranty and any enquiry will be responded within 24 hours.
After-Sale Service TOUPACK has setup its after-sale service in California, USA and Sichuan and Shanghai, China.
